Steam Basics Part 11: How to Select a Steam Trap

By Chad Edmondson (JMP) and Norman Hall (RLD)

For the last two weeks, we have explored how the float and thermostatic steam trap operates, offering some tips for troubleshooting problems in the field. This week we will select a trap for the example that we have referred to throughout this series.

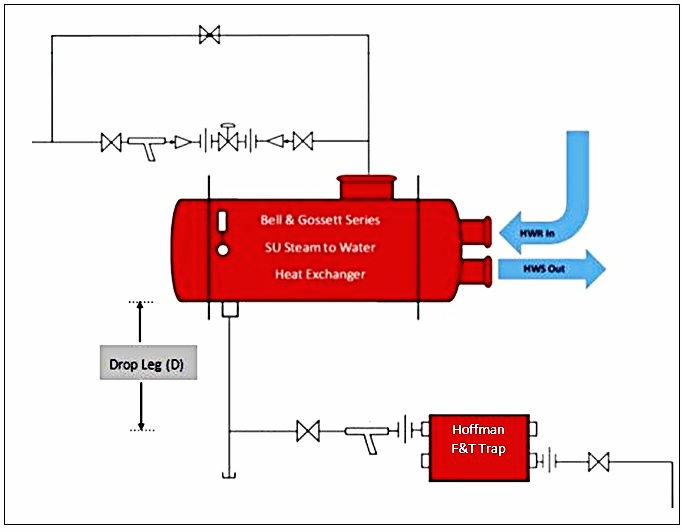

Our example heat exchanger has a capacity of 2,000 pounds per hour (PPH) with 10 PSIG steam pressure to a modulating steam control valve. We will assume the steam pressure to the heat exchanger is 5 PSIG after the control valve pressure drop. We learned in the last two blogs that a float and thermostatic steam trap is the correct choice for this application.

For our example, we will be selecting a Hoffman F&T trap. This durable brand of trap has a hardened stainless steel (SS) seat and pins, SS float, lever, and thermostatic element. All of this is wrapped with a cast iron 30,000 PSI tensile body with grade 5 bolts.

Applying Safety Factors

The selection starts with an appropriate safety factor applied to the 2000 PPH load. In modulating heating load applications, we recommend you use a minimum 1.5 safety factor. One reason there are safety factors applied to steam trap selections is the catastrophic results if a trap is undersized. In Part 9 of this series, we described the operation of the trap. If more PPH of condensate enters the trap than it is rated for, condensate will back up and damaging water hammer may occur. How can this happen?

Let’s start with the heat exchanger itself. There are fouling factors applied to shell and tube heat exchangers during the selection process. These fouling factors could increase the surface area by 35% or more. In a cold startup, the log mean temperature difference (LMTD) of the heat exchanger could be twice as much as the design, which again increases the PPH capacity of the heat exchanger. Both of these reasons may cause the heat exchanger or heating coil to use more PPH of steam if the steam control valve can pass it.

Steam control valves are sized based on CV, which is derived from the capacities needed. It is rare that the required CV is met exactly — there is always some oversizing. In addition, during times of startup when the heat exchanger or coil can take more capacity, the control valve can provide 10-15% more by dropping the outlet pressure. Add to that the effects of wet steam or superheat and the 1.5% safety factor does not seem so large.

Selecting a Float and Thermostatic Steam Trap

Our example requires 2000 PPH in a low pressure 10 PSIG system. The 1.5 safety factor gives us a rated capacity of 3000 PPH. We use a differential of ½ PSIG. This differential is selected because the pressure in the shell may drop as low as “0” as discussed above and in the earlier Steam Basics Part 5: Condensate Drop Leg and Pipe Size blog.  Let’s select a steam trap using the Hoffman Specialty Catalog HS-900F.

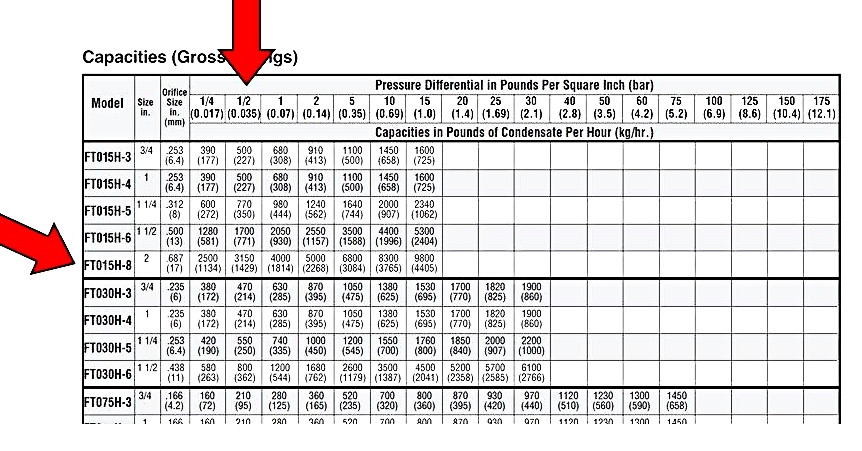

We will use a Hoffman model FT015H-8, which is a 2” “H” pattern float and thermostatic steam trap.
